Description

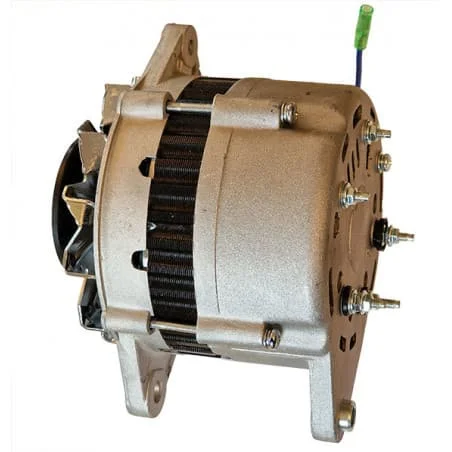

Erstatning for original generator tilYanmar.

12 Volt, 80 Amp.

Med internal regulator, fan

og single pulley. Passer tilYanmar

3JH, 4JH, 6LY, 4LH

og 6CX Engines.

Includes P terminal.

Erstatter Hitachi:LR180-03, LR180-03A, LR180-03B, LR180-03C

Erstatter Yanmar:Yanmar 119573-77200, 119573-77201, 129470-77200

Erstatter Prestlite:20150112

Specifications

12272, 12272N

• MFR:HITACHI
• AMPERAGE:80
• DESIGN:IR/EF
• FEATURE 1:100% New
• FEATURE 2:Aftermarket design
• NOTE 1:Ground insulated unit. Must attach battery negative to either of the two M5 insulated studs near mounting foot.
• PLUG CLOCK:12:30 Plug Clock
• PULLEY CLASS:V1
• ROTATION:CW
• SPECS FOR:Hitachi IR/EF
• SPECS:80 Amp/12 Volt, CW, 1-Groove Pulley
• VOLTAGE:12

USED ON

• Yanmar (1991-2003)

Replaces

• Hitachi LR180-03, LR180-03A, LR180-03B, LR180-03C, Prestolite 20150112, Yanmar 119573-77200, 119573-77201, 129470-77200

USED ON

• Yanmar (1991-2003)

LESTER NUMBERS

• 12272
